Funnels

Overview

Conversion Funnels help you track the conversion rate between multiple steps or paths within your application. They can give you deep insight into problematic pages or sections where users might be struggling to complete a certain action and dropping out of a flow.

Building a funnel

Select "Funnel" as the Metric Type.

You will see a Funnel Steps section appear below. Here, you can define each step of a flow within your application that you are interested in tracking using the Custom Event, Clicks, Redux Action Type, and Visited URL filter types. You can also use Definitions as funnel steps.

📘

Please note that the 'Element Visible' filter is not currently supported as a funnel step, so you will not see Definitions of that type in the list as an option when creating a funnel.

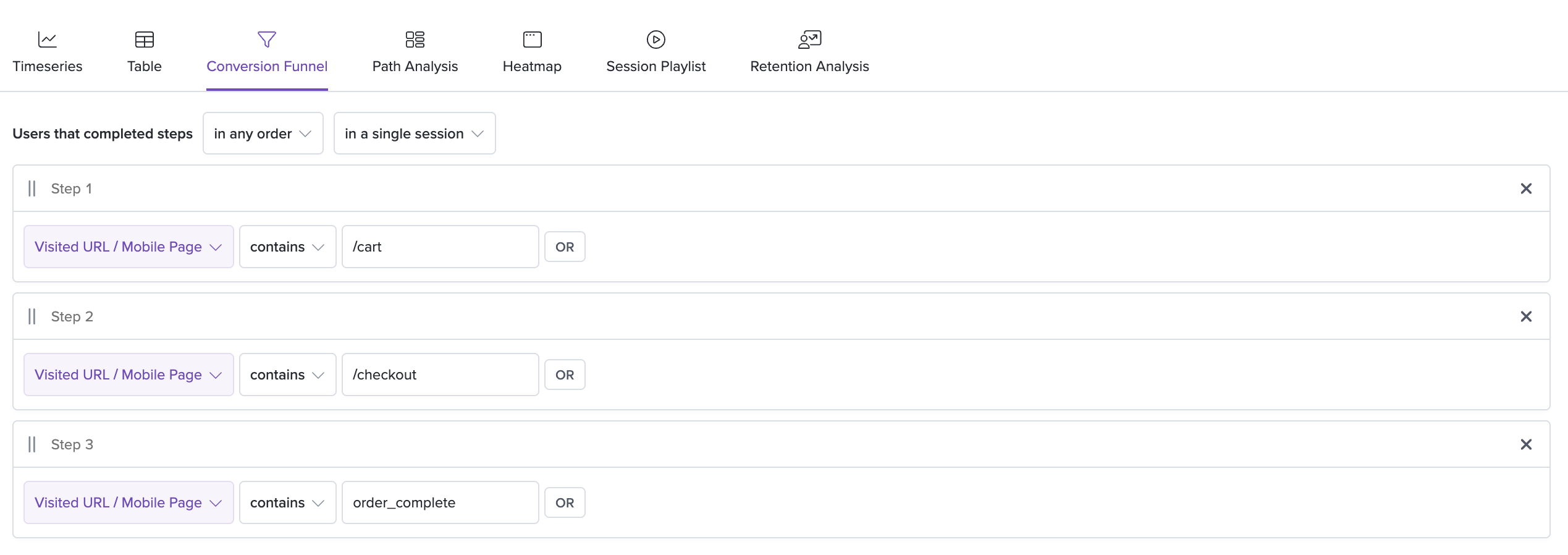

For example, suppose you are tracking a checkout flow. You might set up the funnel to look something like this:

13721372

You can also stack filters on top of the defined steps to refine the insights even further. Suppose that you want to compare the checkout conversion rates for different geographic locations. You can create multiple funnels with the same steps defined (there is a "Copy" feature available) and apply different filters over the same set of steps.

Group By

You have the option to group your funnel by a specified property. Currently we support grouping funnels based on Device, Browser, UTM Medium, UTM Campaign, and UTM Source. This can help you answer questions like “Was the conversion rate for my funnel lower for users on Mobile device?” and "Which of my campaigns resulted in the highest conversion rate?". Select a property from the dropdown and you will see different bars representing session volume based on values for each property.

Understanding your funnels

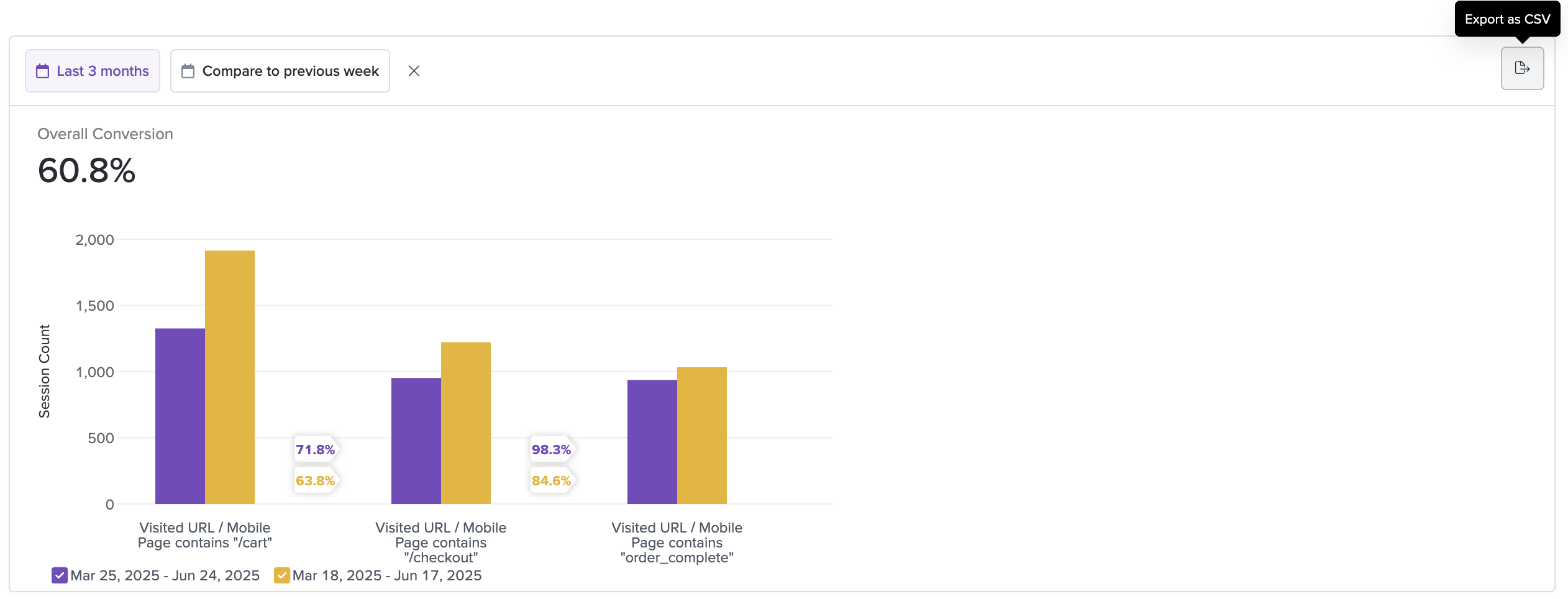

After you create a funnel, there are a few different insights available within the chart.

12941294

Each bar show the number of sessions that have completed the specified step. The percentages between the bar show the conversion rate between each steps. In the example above, only 8 percent of users who completed the first step also completed the second step.

Below the funnel, you can see a list of sessions associated with it. This can help you get some qualitative insights about the conversion rates.

13561356

You can also click on each bar to drill down into the sessions that either did or did not complete each step depending on which insights you are interested in. You may be interested in viewing some of the sessions of users who, for example, did not click the "Buy Now" button but did visit the Checkout page to see if there are any patterns in their behavior. You can also create a Path Analysis chart from any funnel step to learn more about the paths that users may have taken after completing the step.

Funnel insights

Not all users will complete your funnel. LogRocket can now help you understand why. Using data science, LogRocket automatically surfaces issues that have an impact on completing your funnel. For more, see Metric insights

Revenue in Funnels

You can choose to attach revenue values as part of your funnel. For full details, see here.
